 Sujet du message: Voyant porte ouverte
MessagePosté: Mar 02 Nov 2021, 23:13:20
Hors ligne
Nouveau
Nouveau
Avatar de l’utilisateur

Inscription: Lun 21 Sep 2020, 0:32:56
Messages: 31
Roule en: 605 TD 2.1l
Bonsoir,

Je suis entrain de refaire le faisceau d'une SRDT pour avoir les 4 vitres électriques + lumière de courtoisie sur les portes comme j'avais sur mon ex SVDT et j'aimerais savoir qui gère le voyant porte ouverte sur le compteur ? Un boitier ou quoi je pense pas que sa soit les petits "téton" de porte qui sert au lumière de courtoisie ? peut etre si quelqu'un sait :sos:

Merci d'avance :razz:

_________________
605 Phase 1 TD 2.1L 12V 1992 SVDT RIP ACCIDENTE :(
605 Phase 1 2.0 8v AUTO 1993 SRI VENDU
605 Phase 1 TD 2.1L 12V 1993 SRDT mis en SVDT (futur projet: transformation en phase 2 extérieur et intérieur)


Haut
 Profil


 Annonces du forum Peugeot 605

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Mer 03 Nov 2021, 8:53:58
Hors ligne
Assidu
Assidu
Avatar de l’utilisateur

Inscription: Jeu 01 Mar 2007, 0:00:00
Messages: 1711
Localisation: Beauvais (60)
Roule en: 605 16s 2l
Pour le témoin de porte ouverte, c'est au niveau de la serrure que ça se passe. Il faut une serrure qui dispose du capteur.

L'interrupteur qui commande les lumières ne fait contact que quand la porte est vraiment ouverte, alors que l'indicateur porte ouverte signale même si la portière n'est que mal fermée (premier cran).

Donc pour avoir cette option, il faut remplacer les serrures des portières et passer un nouveau faisceau électrique.

_________________
Thierry, Beauvais (Oise, 60)
605 ph1 SRi 130cv 6BR6A2, 10/89, Rouge Alhambra (M4JF) - options ajoutées : jantes SV ph1, intérieur cuir noir
605 ph2.5 SV3 ES9 BVA toutes options, 194cv, 6BXFZP, 05/98, roule au E85 ! Bleu de Rhodes - Merci Philippe (Eliptyk)


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Mer 03 Nov 2021, 15:05:25
Hors ligne
Régulier
Régulier
Avatar de l’utilisateur

Inscription: Dim 21 Juin 2020, 23:41:40
Messages: 102
Roule en: 605 TD 2.1l
Sorry its English

I have the problem with my svdt(phase 1). Central lighting only turn on when I unlock the car but no when I open any of doors. I have changed green relay for that and that happiness worked like 3 days. Do you know where is the problem?

_________________
Peugeot 605 phase 1 2.1 svdt 110HP


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Jeu 04 Nov 2021, 13:44:41
Hors ligne
Nouveau
Nouveau
Avatar de l’utilisateur

Inscription: Lun 21 Sep 2020, 0:32:56
Messages: 31
Roule en: 605 TD 2.1l
Tracker a écrit:
Pour le témoin de porte ouverte, c'est au niveau de la serrure que ça se passe. Il faut une serrure qui dispose du capteur.

L'interrupteur qui commande les lumières ne fait contact que quand la porte est vraiment ouverte, alors que l'indicateur porte ouverte signale même si la portière n'est que mal fermée (premier cran).

Donc pour avoir cette option, il faut remplacer les serrures des portières et passer un nouveau faisceau électrique.


Ok et ensuite coté caisse faut rajouter un + ou une masse ? :?:

Skojevac a écrit:
Sorry its English

I have the problem with my svdt(phase 1). Central lighting only turn on when I unlock the car but no when I open any of doors. I have changed green relay for that and that happiness worked like 3 days. Do you know where is the problem?


Hello, have you tried to check this thing which is used for light sometimes it can have bad contact? Image

(sorry i use a translator )

_________________
605 Phase 1 TD 2.1L 12V 1992 SVDT RIP ACCIDENTE :(
605 Phase 1 2.0 8v AUTO 1993 SRI VENDU
605 Phase 1 TD 2.1L 12V 1993 SRDT mis en SVDT (futur projet: transformation en phase 2 extérieur et intérieur)


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Jeu 04 Nov 2021, 18:19:29
Hors ligne
Régulier
Régulier
Avatar de l’utilisateur

Inscription: Dim 21 Juin 2020, 23:41:40
Messages: 102
Roule en: 605 TD 2.1l
Honestly I didn't but I actually didn't find reason to check them because warning light for open doors is working. I could try with checking these. Do you know maybe any other possible reasons for my problem?

_________________
Peugeot 605 phase 1 2.1 svdt 110HP


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Sam 06 Nov 2021, 8:28:36
Hors ligne
Assidu
Assidu
Avatar de l’utilisateur

Inscription: Jeu 01 Mar 2007, 0:00:00
Messages: 1711
Localisation: Beauvais (60)
Roule en: 605 16s 2l
Skojevac a écrit:
Honestly I didn't but I actually didn't find reason to check them because warning light for open doors is working. I could try with checking these. Do you know maybe any other possible reasons for my problem?


Open door warning light on dashboard is set by the door locks, not the door switches because it can detect a half-closed door. The door switches are only used for central lightening so you can investigate here.

-- Edit du Sam 06 Nov 2021, 9:28:36 --

Toinou605 a écrit:
Ok et ensuite coté caisse faut rajouter un + ou une masse ? :?:


Je n'ai pas le schéma sous les yeux, mais c'est un contacteur qui est dans la serrure. Il est très probable qu'il soit basé sur un principe de mise à la masse. Sachant que le témoin détecte toutes les portières, il est logique de penser que chaque serrure dispose d'un fil qui sont ensuite réunis au niveau du boîtier de centralisation.

Je vais regarder dans les schémas que j'ai, je devrais trouver quelque chose.

_________________
Thierry, Beauvais (Oise, 60)
605 ph1 SRi 130cv 6BR6A2, 10/89, Rouge Alhambra (M4JF) - options ajoutées : jantes SV ph1, intérieur cuir noir
605 ph2.5 SV3 ES9 BVA toutes options, 194cv, 6BXFZP, 05/98, roule au E85 ! Bleu de Rhodes - Merci Philippe (Eliptyk)


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Sam 06 Nov 2021, 16:25:02
Hors ligne
Régulier
Régulier
Avatar de l’utilisateur

Inscription: Dim 21 Juin 2020, 23:41:40
Messages: 102
Roule en: 605 TD 2.1l
Tracker a écrit:
Skojevac a écrit:
Honestly I didn't but I actually didn't find reason to check them because warning light for open doors is working. I could try with checking these. Do you know maybe any other possible reasons for my problem?


Open door warning light on dashboard is set by the door locks, not the door switches because it can detect a half-closed door. The door switches are only used for central lightening so you can investigate here.

-- Edit du Sam 06 Nov 2021, 9:28:36 --


Actually I think that is not the case. I know I did earlier push those switches with fingers and light on dashboard went on and off. Do you maybe have proof to prove me I am wrong? I would actually like to be wrong now hahah

_________________
Peugeot 605 phase 1 2.1 svdt 110HP


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Dim 07 Nov 2021, 11:20:04
Hors ligne
Assidu
Assidu
Avatar de l’utilisateur

Inscription: Jeu 01 Mar 2007, 0:00:00
Messages: 1711
Localisation: Beauvais (60)
Roule en: 605 16s 2l
Skojevac a écrit:
Actually I think that is not the case. I know I did earlier push those switches with fingers and light on dashboard went on and off. Do you maybe have proof to prove me I am wrong? I would actually like to be wrong now hahah


So maybe it's the case for phase 1. My phase 1 SRi doesn't have the open door warning, only my phase 2 SV3 has the feature. On phase 2, the open door warning is by the lock and not the light swithes. So I don't really know for phase 1.

Still looking on my electrical database to find realiable information.

I'll post later about the results.

Edit :

Here is the electrical plans for open door warning. It's for phase 1, and it confirms my explaination : this feature depends on locks and not on light switches. Maybe this can help you !

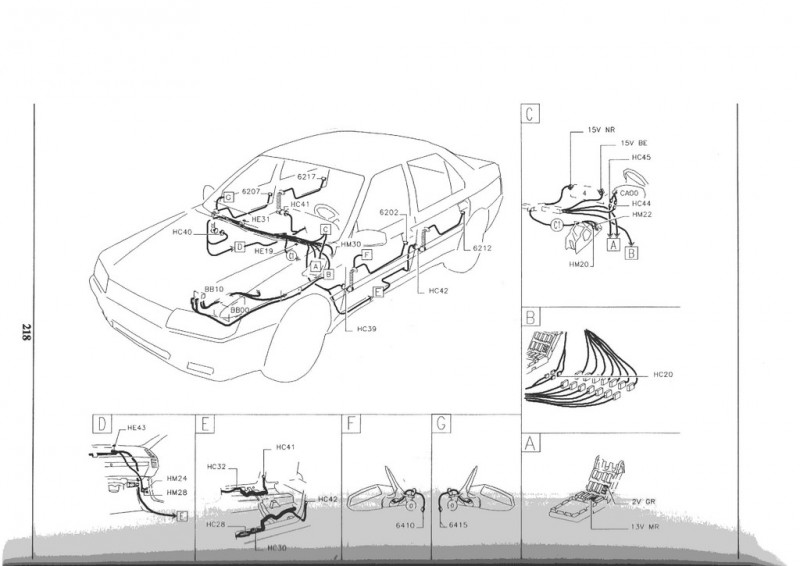

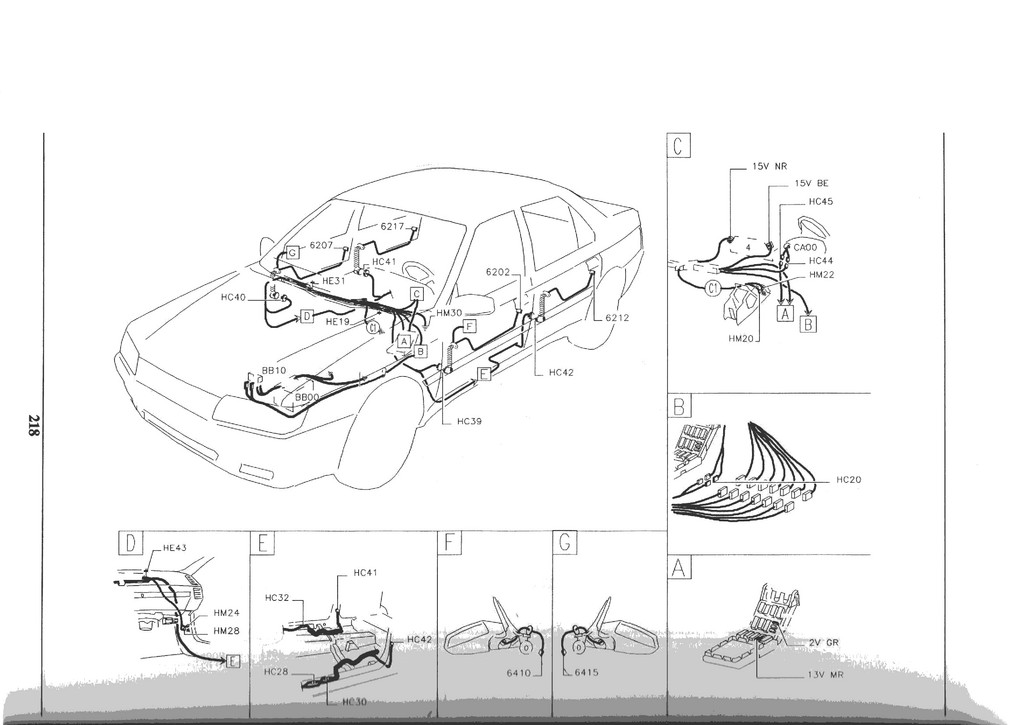

Page_218.jpg [ 100.04 Kio | Vu 958 fois ]

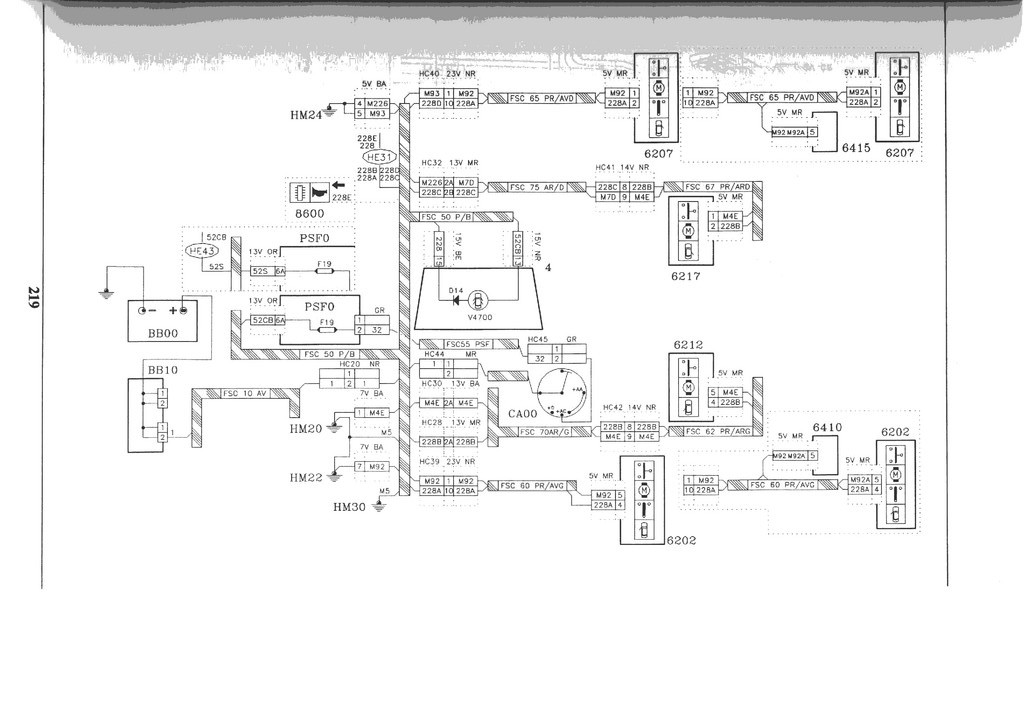

Page_219.jpg [ 112.76 Kio | Vu 958 fois ]


Edit : Toinou605, ça concerne aussi ta demande, donc ça devrait pouvoir t'aider aussi :bravo:

_________________
Thierry, Beauvais (Oise, 60)
605 ph1 SRi 130cv 6BR6A2, 10/89, Rouge Alhambra (M4JF) - options ajoutées : jantes SV ph1, intérieur cuir noir
605 ph2.5 SV3 ES9 BVA toutes options, 194cv, 6BXFZP, 05/98, roule au E85 ! Bleu de Rhodes - Merci Philippe (Eliptyk)


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Dim 07 Nov 2021, 11:29:30
Hors ligne
Régulier
Régulier
Avatar de l’utilisateur

Inscription: Dim 21 Juin 2020, 23:41:40
Messages: 102
Roule en: 605 TD 2.1l
Tracker a écrit:
Skojevac a écrit:
Actually I think that is not the case. I know I did earlier push those switches with fingers and light on dashboard went on and off. Do you maybe have proof to prove me I am wrong? I would actually like to be wrong now hahah


So maybe it's the case for phase 1. My phase 1 SRi doesn't have the open door warning, only my phase 2 SV3 has the feature. On phase 2, the open door warning is by the lock and not the light swithes. So I don't really know for phase 1.

Still looking on my electrical database to find realiable information.

I'll post later about the results.

Edit :

Here is the electrical plans for open door warning. It's for phase 1, and it confirms my explaination : this feature depends on locks and not on light switches. Maybe this can help you !





Edit : Toinou605, ça concerne aussi ta demande, donc ça devrait pouvoir t'aider aussi :bravo:


Hmm...Okey. I will listen to your words and check those switches as soon as possible. Just tell me does all of them switches must work in order for light to turn on because in my case none of them doors can turn on the lights. Thank you for your advices and researches :)

_________________
Peugeot 605 phase 1 2.1 svdt 110HP


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Dim 07 Nov 2021, 14:15:55
Hors ligne
Assidu
Assidu
Avatar de l’utilisateur

Inscription: Jeu 01 Mar 2007, 0:00:00
Messages: 1711
Localisation: Beauvais (60)
Roule en: 605 16s 2l
Here is the electrical for interior lightening if this helps !

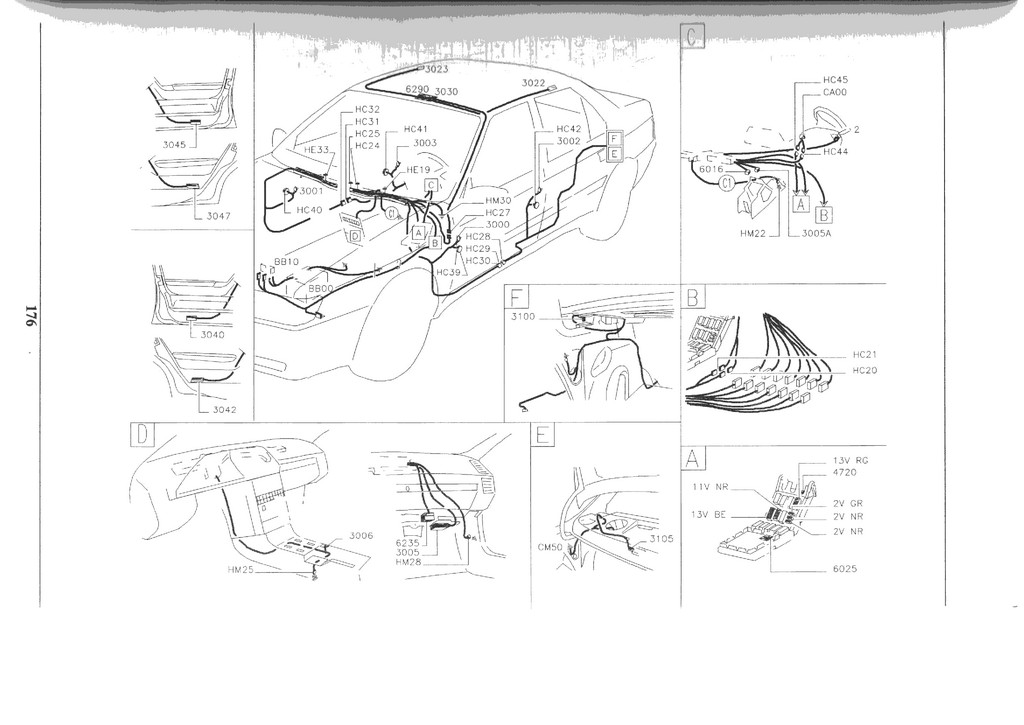

Page_176.jpg [ 114.17 Kio | Vu 956 fois ]

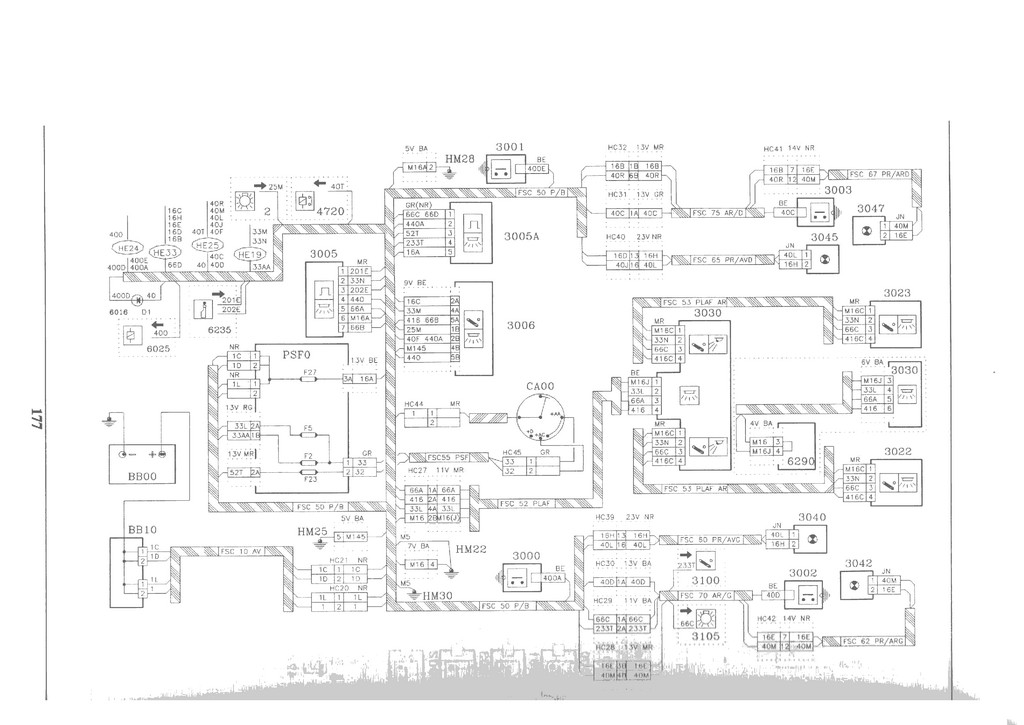

Page_177.jpg [ 127.53 Kio | Vu 956 fois ]

_________________
Thierry, Beauvais (Oise, 60)
605 ph1 SRi 130cv 6BR6A2, 10/89, Rouge Alhambra (M4JF) - options ajoutées : jantes SV ph1, intérieur cuir noir
605 ph2.5 SV3 ES9 BVA toutes options, 194cv, 6BXFZP, 05/98, roule au E85 ! Bleu de Rhodes - Merci Philippe (Eliptyk)


Haut
 Profil

 Sujet du message: Re: Voyant porte ouverte
MessagePosté: Lun 08 Nov 2021, 10:47:20
Hors ligne
Régulier
Régulier
Avatar de l’utilisateur

Inscription: Dim 21 Juin 2020, 23:41:40
Messages: 102
Roule en: 605 TD 2.1l
Sure it can help. Thank you very much for your help. I will update topic when I research my problem.

_________________
Peugeot 605 phase 1 2.1 svdt 110HP


Haut
